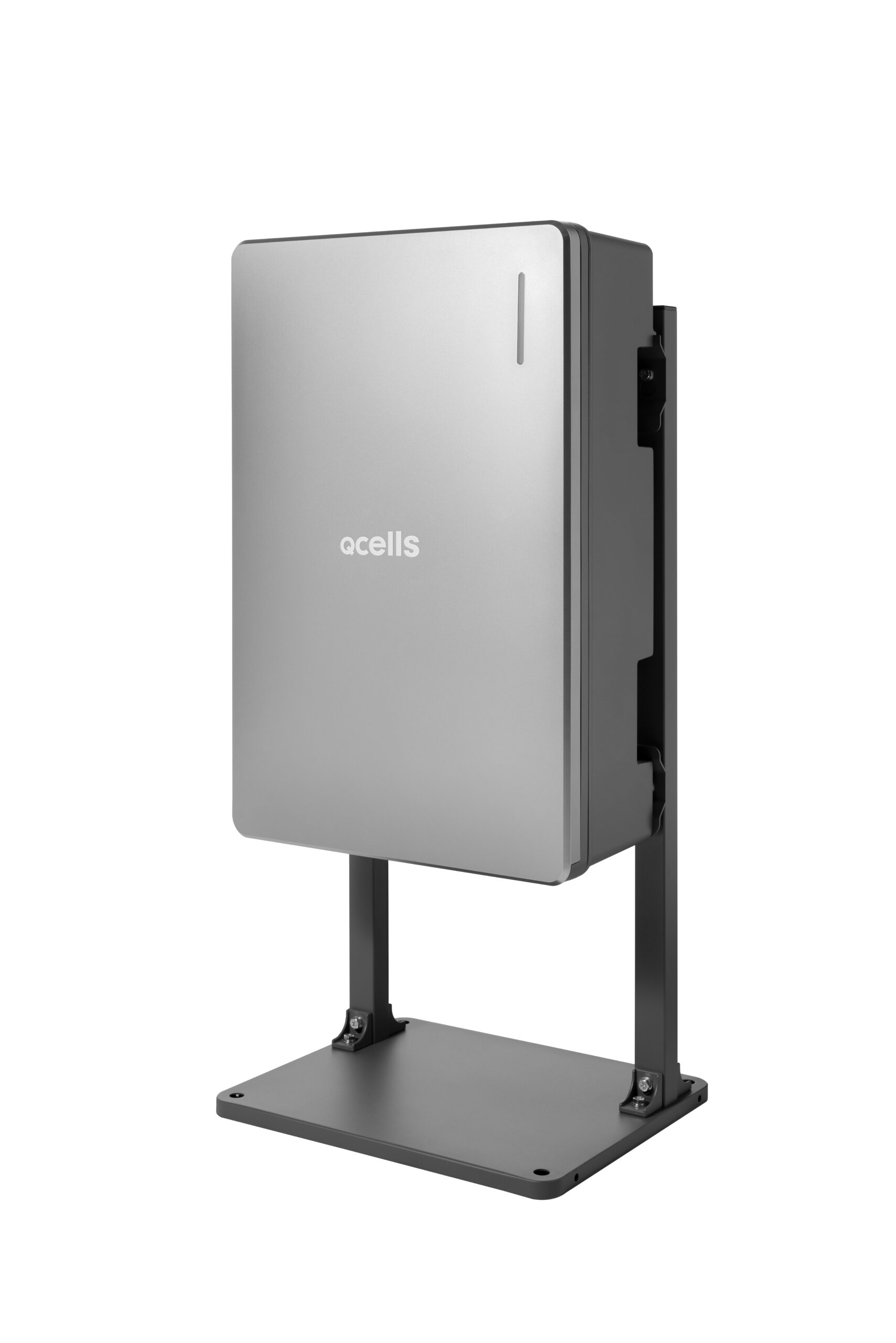

Qcells Q.VOLT H4 – 3.68kw or 5kw Hybrid Inverter
MPN: Q.VOLT.H1
£1,470.00(inc. VAT)
£1,225.00 (excl. VAT)
Q.VOLT H4 – 3.68kw or 5kw Hybrid Inverter
Dimensions Inverter Module / Battery Module (W × H × D) [mm] 460 × 700 × 221, 238 (From Wall)
Weight Inverter Module / Battery Module [kg] 37.5 / 61.1 33.9 / 61.1
Operating Temperature Range [°C] Q.VOLT: −20 to 60 (de-rating Start temp. 45), Q.SAVE: −10 to 45
Relative Humidity [%] 4 to 100 (Condensing)
Protection Degree / Class IP65
Mounting Wall-Mounted or Floor-Mounted Options
Max. Operation Altitude [m] 2,000
Cooling Method Natural air cooling
Product Warranty / Performance Warranty 15 / 15 years
Noise Emissions ≤ 40 dB (A) @ 1 m
Over Voltage Category (Internal) OVC II (DC) / OVC III (AC)
Communications LAN, RS485, CAN, Wi-Fi (optional), LTE (optional)
Remote Monitoring Web, Mobile & App
Software Update Online update
Energy Management System Integrated
Country of Manufacturer Republic of Korea
PV DATA (DC)
Max. Input power (Max. Input per MPPT) [kWp] 8.0 (4.0 per MPPT)
Max. Input Voltage [VDC] 600 N/A
Start Input Voltage / MPP Voltage Range [V] 120 / 90 to 550
Number of Independent MPPTs 2
Number of DC Input Pairs per MPPT 1
Max. Input Current per MPPT /
Max. Short Circuit Current per MPPT [A] 15 / 20
DC Connection Type MC4
- Brand : Q Cells
